Подробная информация о продукте:
Оплата и доставка Условия:
|
| Двигатель: | Юхай | mast height: | 3500mm |
|---|---|---|---|
| load center: | 900mm | передача: | Гидравлические |
| Размер вилки: | 1800 мм |

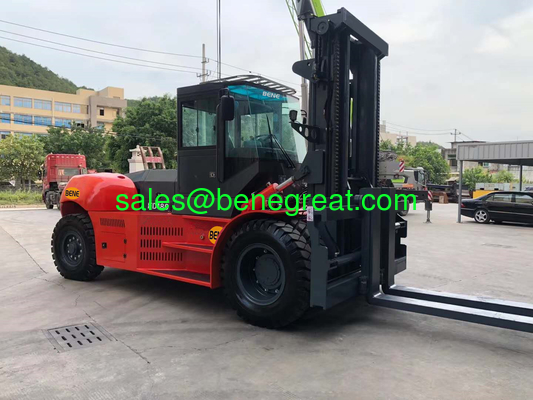

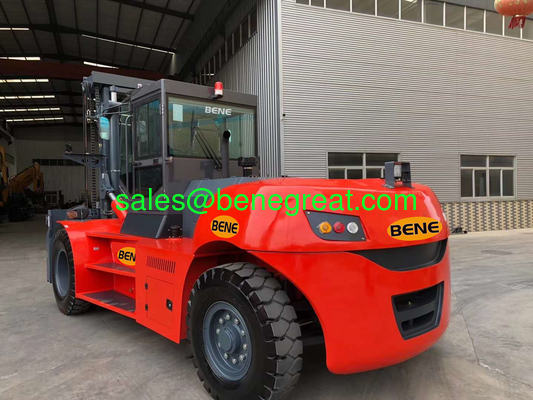

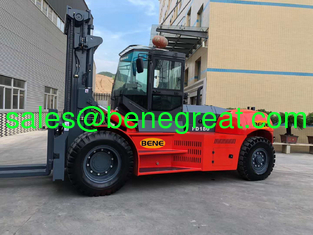

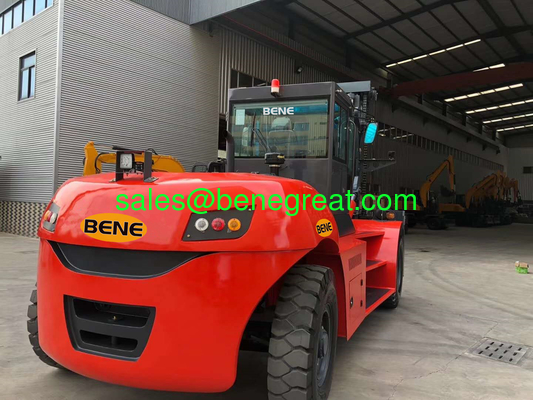

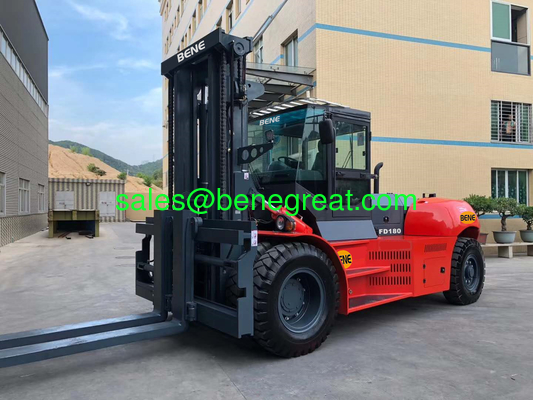

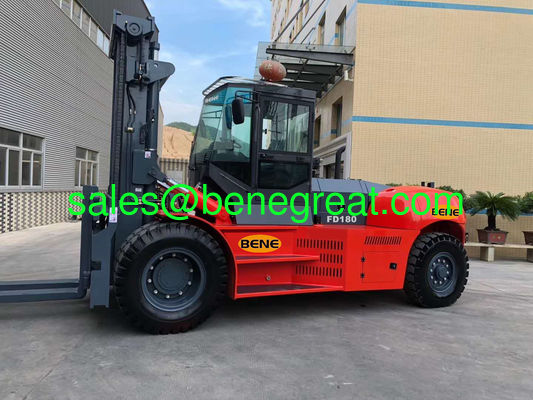

BENE 15ton /16ton FD160 diesel forklift truck 16 ton heavy diesel forklift for sale
Engine: 15 ton diesel forklift truck use Yuchai Engine, low oil consumption, high quality turbocharged engine, good power performance, big torque reserves, has strong power, energy conservation and environmental protection
Steering axle: 15 ton diesel forklift truck adopt transverse oil cylinder type steering bridge, full-hydraulic steering, flexible and light, reliable
Transmission & torque convert: 15 ton diesel forklift truck matched with imported technology, reliable performance, convenient maintenance, smooth transmission, and convenient operation
Hydraulic system: 15 ton diesel forklift truck has double pump confluence, small system flow, low power consumption, reliable performance, excellent operating performance
Pipeline: high pressure oil line impact resistance, wear resistance and long service life
Tyre: sino-us joint brand, resistant to wear and sting, high strength tyres, bear heavy loaded - safe and reliable
Fork: use famous brand Fork, with hydraulic fork positioner, easy operation and reduce drivers’ labor intensity
Mast: 3.5-6m box-type internal-external mast, special all-round roller bearings, increase lifting performance
| Item | Specification | Unit | |||
| General | 1 | Model | FD150 | ||
| 2 | Power Type/model | Diesel | |||
| 3 | Rated Capacity | Kg | 15000 | ||
| 4 | Load Center | mm | 900 | ||
| Dimensions | 5 | Lift Height | mm | 3500 | |
| 6 | Fork Size(LxWxT) | mm | 2000×220×90 | ||
| 7 | Fork Spread(outside)(Min./Max) | mm | 540/2260 | ||
| 8 | Mast Tilt Angle(F/R) | deg | 6°/12° | ||
| 9 | Fork Overhang | mm | 800 | ||
| 10 | Length without forks | mm | 5400 | ||
| 11 | Overall Width | mm | 2550 | ||
| 12 | Mast Lowered Height | mm | 3460 | ||
| 13 | Overhead Guard Height | mm | 3300 | ||
| 14 | Outer turning Radius | mm | 5050 | ||
| Performance | 15 | Speed(Unload/Load) | Travel | km/h | 30/26 |
| 16 | Lifting | mm/s | 300 | ||
| 17 | Max.gradeability(Load) | % | 20 | ||
| 18 | Max.drawbar pull(Load) | KN | 120 | ||
| 19 | service Weight | kg | 21000 | ||
| Wheels&Tires | 20 | Tire | Front | 4×12.00-24-18PR | |
| 21 | Rear | 2×12.00-20-18PR | |||
| 22 | Tread | Front | mm | 1850 | |
| 23 | Rear | mm | 2130 | ||
| 24 | Wheelbase | mm | 3600 | ||
| 25 | Ground Clearance(Under mast) | mm | 260 | ||
| Power & Transmission | 26 | Battery | Voltage/Capacity(5HR) | VA/h | 2X12/120 |
| 27 | Engine | Model | YC6J175-T302 | ||
| 28 | Manufacture | YUCHAI | |||
| 29 | Rated Output | Kw | 129 | ||
| 30 | Rated Torque | N.m | 710 | ||
| 31 | No.Of Cyinder | 6 | |||
| 32 | Bore*stroke | mm | 102/120 | ||
| 33 | Displacement | L | 6.5 | ||
| 34 | Transmission | Type | Fluid Torque Converter | ||
| 35 | StageFWD/RVS | 2/1 | |||
| 36 | Operating Pressute | Mpa | 19 | ||
FAQ
1.What's the Certificate do you have?
BENE workshop meet with the ISO9001 Quality System. And all of our products are with CE certificate. EPA approval can be available if needed.
2. Can you customize and design as the clients' requirement?
BENE will try our best to meet all kinds of clients' special requirements. And for new products that have not been into the market yet, we have our technical team to help the clients.
3. How long is the warranty of your products?
All of products are with 1 year / 2000 working hours subject to the first.
4. Can you produce the products labeled with the client's brand?
Yes, we do!
With the authorization of the brand, we can OEM for our clients.
5. What's the payment terms do you accept?
Normally we accept 30% deposit, 70%balance before delivery, it can be negotible according to the actual situation.
6. Delivery date:
If clients need normal products, we will deliver the products within 30 working days. If clients need customerized products, the delivery date depend on the requirements.
